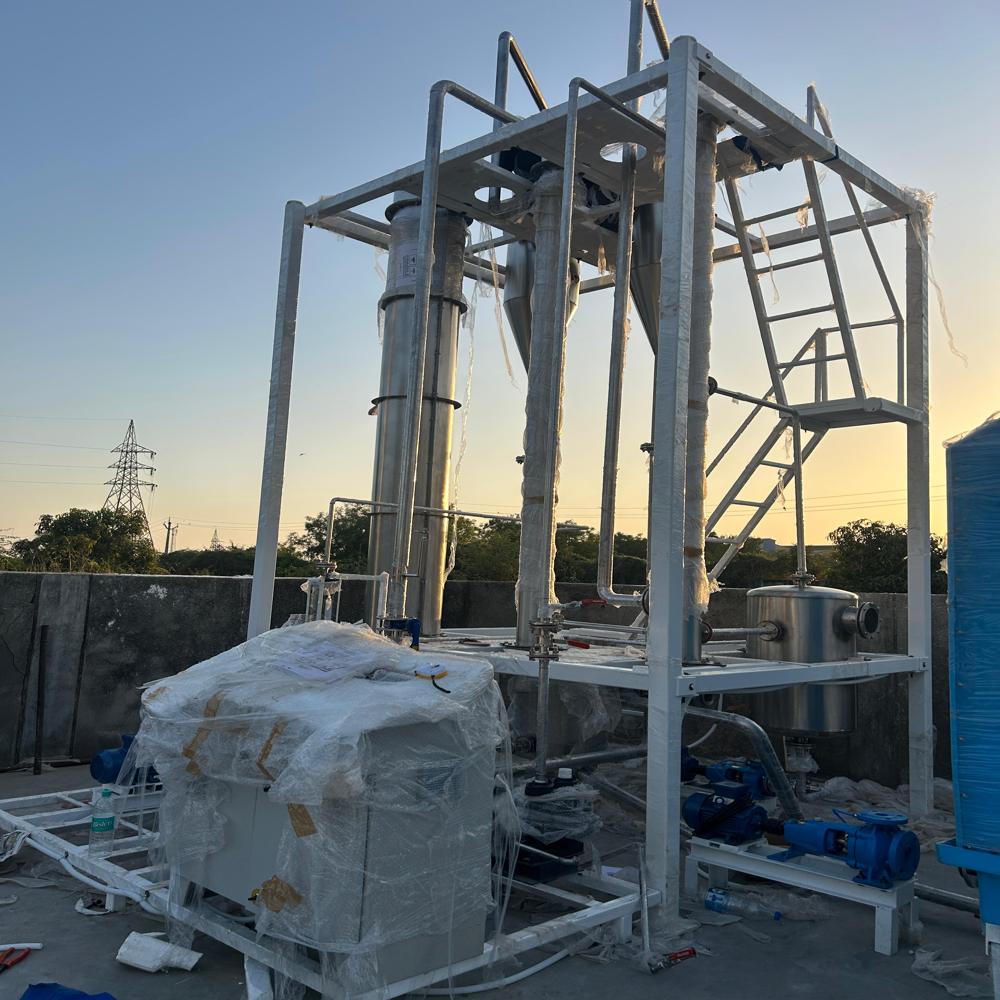

Multi Effect Evaporator Plant (MEE Plant)

About Multi Effect Evaporator Plant (MEE Plant)

Elevate Your Process Efficiency and Sustainability with Our Advanced MEE Technology

As a leading manufacturer and supplier of cutting-edge process equipment, we offer state-of-the-art Multi-Effect Evaporator (MEE) Plants engineered for superior concentration, solvent recovery, and effective wastewater treatment. Our MEE systems are designed to deliver maximum thermal efficiency, ensuring significant operational cost savings and contributing directly to your environmental compliance and Zero Liquid Discharge (ZLD) goals.

Design and Operation Principles

The core principle of MEE operation is leveraging a sequential decrease in pressure and temperature across the effects.

1. Operation Flow: Fresh heating steam is only fed to the first effect. The liquid boils in this vessel, and the resulting vapor (steam) is then used to heat the feed in the second effect.
2. Pressure Gradient: To make the vapor from the first effect hot enough to boil the liquid in the second effect, the pressure is progressively lowered (Under Vacuum) in each subsequent stage. This means the boiling point of the liquid also decreases in each effect, maintaining the necessary temperature difference for efficient heat transfer.
3. Feed Arrangements: The way the liquid feed moves between effects dictates the arrangement:
• Forward Feed: The liquid feed enters the first (hottest) effect and moves in the same direction as the heating steam to the last (coldest) effect. This is often used for temperature-sensitive materials like fruit juice because the concentrated product exits at the lowest temperature.
• Backward Feed: The liquid feed enters the last (coldest) effect and is pumped against the flow of the steam toward the first (hottest) effect. This is ideal for viscous liquids, as the high temperature in the final concentration stages (Effect 1) lowers the viscosity, improving heat transfer.

Design Types:

Common configurations include Falling Film Evaporators, where the liquid flows as a thin film down the inside of the tubes, and Forced Circulation Evaporators, where the liquid is pumped at high velocity to prevent boiling inside the tubes, making them highly suitable for handling feeds prone to scaling or fouling.

Common Applications

MEEs are essential in a wide variety of process industries:

• Wastewater Treatment: The largest use is in concentrating industrial effluents, such as those from pharmaceuticals, textiles, and distilleries, to drastically reduce the volume for disposal or to facilitate ZLD.
• Food and Beverage: Used for concentrating on liquids like fruit juices, milk, sugar solutions, and coffee extracts. The low operating temperatures help preserve the quality, flavor, and color of the final product.
• Chemical and Petrochemical: Applied for concentrating various chemical solutions, separating solvents, and recovering specific inorganic or organic chemicals.
• Pulp and Paper: Used to concentrate the spent liquor (black liquor) recovered from the paper pulping process before it is incinerated or further treated.
• Pharmaceuticals: Crucial for concentrating Active Pharmaceutical Ingredients (APIs) and other valuable intermediates with high precision and gentle handling.

Key Benefits

The main advantage of using an MEE is its exceptional energy efficiency, which translates directly into cost savings.

• High Steam Economy: An MEE significantly reduces the need for fresh external steam. The latent heat from the vapor produced in one stage is used as the heat source for the next, essentially allowing one kilogram of steam to evaporate multiple kilograms of solvent.
• Lower Operating Costs: This smart reuse of heat leads to dramatically lower energy consumption and, consequently, lower utility bills compared to a single-effect evaporator.
• Environmental Compliance (ZLD): MEEs are critical components in achieving Zero Liquid Discharge (ZLD) systems. They treat high-strength industrial wastewater by concentrating the effluent volume for easier disposal, while the recovered, pure water can be recycled back into industrial processes.
